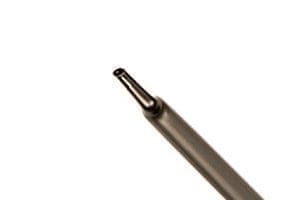

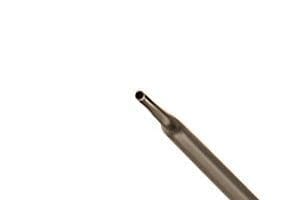

3M™ EPS-200 Adhesive-Lined Flexible Polyolefin (2:1 Shrink Ratio)
Price range: $5.40 through $506.00
Our high quality shrink tubing is the ideal part for securing and protecting automobile and marine wire bundles and components. As the heat shrink tubing conforms to its contents, it provides insulation you can depend on and superior abrasion prevention.
| SKU | Image | Length | Expanded I.D. (Minimum) | Recovered I.D. (Maximum) | Recovered Wall Thickness (Nominal) | Meltable Recovered Wall Thickness | Price | Qty |
|---|---|---|---|---|---|---|---|---|
| EPS-200 1/8 |
 | 4' Length | 0.125" (3,18 mm) | 0.063" (1,60 mm) | 0.027" (0,68 mm) | 0.004" (0,10 mm) | $6.85 | |
| EPS-200 1/8 |
| 25-4' Lengths | 0.125" (3,18 mm) | 0.063" (1,60 mm) | 0.027" (0,68 mm) | 0.004" (0,10 mm) | $137.00 | |
| EPS-200 3/16 |
 | 4' Length | 0.187" (4,75 mm) | 0.093" (2,36 mm) | 0.027" (0,68 mm) | 0.004" (0,10 mm) | $6.25 | |
| EPS-200 3/16 |
| 25-4' Lengths | 0.187" (4,75 mm) | 0.093" (2,36 mm) | 0.027" (0,68 mm) | 0.004" (0,10 mm) | $125.00 | |
| EPS-200 1/4 |
 | 4' Length | 0.250" (6,35 mm) | 0.125" (3,18 mm) | 0.030" (0,76 mm) | 0.005" (0,13 mm) | $5.40 | |
| EPS-200 1/4 |
| 25-4' Lengths | 0.250" (6,35 mm) | 0.125" (3,18 mm) | 0.030" (0,76 mm) | 0.005" (0,13 mm) | $108.00 | |
| EPS-200 3/8 |
 | 4' Length | 0.375" (9,53 mm) | 0.187" (4.75 mm) | 0.031" (0,79 mm) | 0.005" (0,13 mm) | $5.60 | |
| EPS-200 3/8 |
| 25-4' Lengths | 0.375" (9,53 mm) | 0.187" (4.75 mm) | 0.031" (0,79 mm) | 0.005" (0,13 mm) | $111.00 | |
| EPS-200 1/2 |
 | 4' Length | 0.500" (12,70 mm) | 0.25" (6,35 mm) | 0.032" (0,81 mm) | 0.006" (0,15 mm) | $6.00 | |
| EPS-200 1/2 |
| 25-4' Lengths | 0.500" (12,70 mm) | 0.25" (6,35 mm) | 0.032" (0,81 mm) | 0.006" (0,15 mm) | $120.00 | |
| EPS-200 3/4 |
 | 4' Length | 0.75" (19,05 mm) | 0.375" (9,53 mm) | 0.037" (0,94 mm) | 0.006" (0,15 mm) | $15.75 | |
| EPS-200 3/4 |
| 25-4' Lengths | 0.75" (19,05 mm) | 0.375" (9,53 mm) | 0.037" (0,94 mm) | 0.006" (0,15 mm) | $315.00 | |
| EPS-200 1 |
 | 4' Length | 1" (25,40 mm) | 0.5" (12,70 mm) | 0.046" (1,17 mm) | 0.008" (0,20 mm) | $25.30 | |
| EPS-200 1 |
| 25-4' Lengths | 1" (25,40 mm) | 0.5" (12,70 mm) | 0.046" (1,17 mm) | 0.008" (0,20 mm) | $506.00 |
Description
3M™ EPS-200 is a 2:1 thin-wall, flexible tubing offering the advantages of integral , adhesive-lined construction. The tubing is made from flame-retardant, flexible polyolefin with a thin layer of special thermoplastic adhesive. When heated in excess of 121°C (250°F), 3M EPS-200 tubing rapidly shrinks to a skintight fit, forcing the melted adhesive lining to flow and cover the substrate. The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals.
Meets the requirements of:
- AS23053/Class 2*
- UL Recognized, File E-39100
- CSA Certified , CSA LR38227
- For RoHS and REACH information, contact us.
*Formerly MIL-I-23053/4, MIL DTL 23053/4 and SAE-AMS-DTL-23053/4
Additional information
| Size (inches) | 1", 1/2", 1/4", 1/8", 3/16", 3/4", 3/8" |
|---|
